Velocity Pressure





        - This function defines the values or coefficients to calculate a velocity pressure.

        - Velocity pressure is automatically calculated considering topography, regional characteristics and importance of

           buildings.







From the Main Menu select [Load] tap > [Static Load] > [Lateral] group > [Wind load] > [Velocity Pressure]

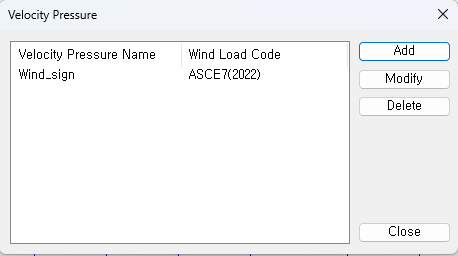

[ Velocity Pressure Dialog]

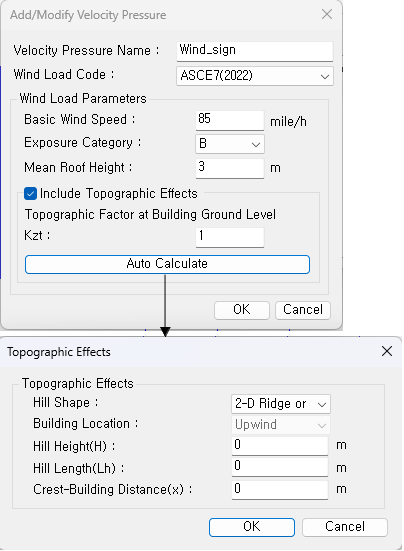

[ Add/Modify Velocity Pressure Dialog]

 Area Wind Pressure



When defining or adding new velocity pressures



Enter the following items and click .





To modify previously defined velocity pressure



Select the relevant velocity pressure from the list, and then click .





When deleting previously defined velocity cases



Select the relevant velocity pressures from the list, and then click  .



Wind Load Code

Select the standard for a calculation of wind pressure

- ASCE7 (2022)

- ASCE7 (2016)

- KDS(41-12:2022)

- KDS(41-10-15:2019)

- KBC (2016)

- KBC (2009)

- China (GB50009-2012)

- China (GB50009-2001)
